LaseTVM
Laser-based truck volume measurement for bulk materials and logs
Operational benefits
-
No more manual measurements
-
Overloading and underloading
-
Emptiness control
-
Carryback check
-
Faster vehicle processing
-
Fully automated data collection
-
Immediate availability of all measurement data
-
Transparent process control
-
Ability to integrate with an ERP system
-
Ability to integrate with data from an existing weighbridge
-
Ability to analyze data using a camera
-
Vehicle identification using tags via an RFID antenna and/or an OCR camera to read the license plate.
Economic benefits
-
Reduced staffing costs
-
Fewer billing errors
-
Protection against volume manipulation
-
Faster billing
-
Short amortization period
Management benefits
-
Real-time data via web portal
-
Verifiable measurements
-
Audit-proof documentation
-
Higher process reliability
Bulk materials
LaseTVM systems are high-precision 3D laser measurement systems designed to automatically measure the load volume of trucks while they are stationary or passing through. These measurement systems are highly versatile and are used to measure the volume of a wide variety of materials, such as stones, sand, ore, and wood products.
Static Volume Measurement
TVM-3D-S
LaseTVM-3D-S basis package
Measurement Process: Static - truck is stationary within the measurement area
Material: Bulk material—sand, soil, gravel, stones, wood chips, etc.
Deviation: +/- 2%
Interface: Ethernet TCP/IP
Options LaseTVM-3D-S
-
OCR Identification - OCR camera next to the lane
-
RFID Identification - On the truck and RFID reader next to the lane
-
Traffic Light - Light signal device to inform drivers
-
Documentation Camera - Images of the cargo area are captured
-
Web Portal - Management tool for online process monitoring
-
LaseSWAN - Measurement system mounted on a trailer
Dynamic Volume Measurement
TVM-3D-M
LaseTVM-3D-M basis package

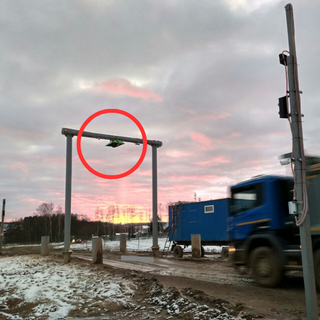

Measurement Process: Dynamic—truck drives through the measurement area
Material: Bulk material—sand, soil, gravel, stones, wood chips, etc.
Deviation: +/- 2%
Interface: Ethernet TCP/IP
Options LaseTVM-3D-M
-
OCR Identification - OCR camera next to the lane
-
RFID Identification - On the truck and RFID reader next to the lane
-
Traffic Light - Light signal device to inform drivers
-
Documentation Camera - Images of the cargo area are captured
-
Web portal – Management tool for online process control
-
LaseSWAN – Measurement system mounted on a trailer
Application examples
for LaseTVM
Logs

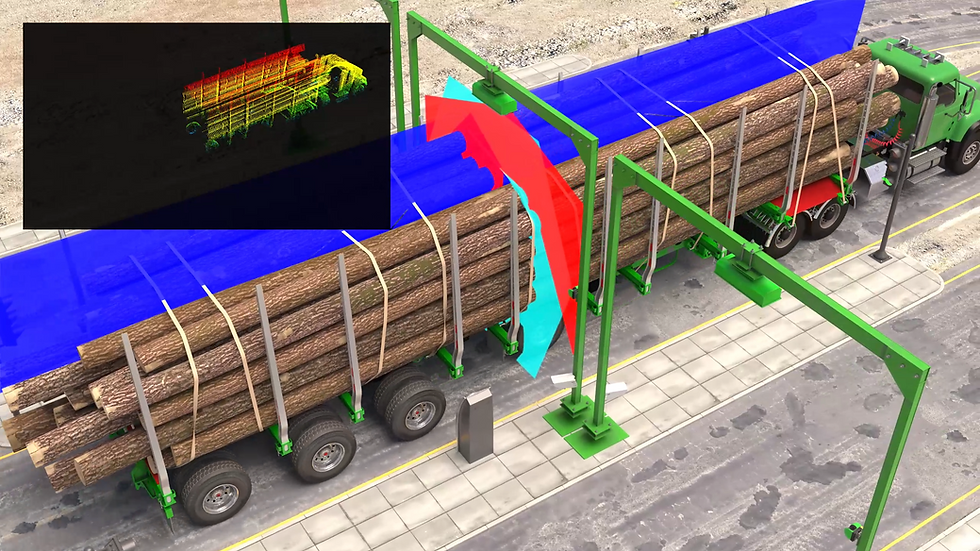

The LaseTVM-3D-LOG (LOG/MOTION) is a high-precision 3D laser measurement system for the automatic and dynamic measurement of roundwood volume on trucks as they pass through. The measurement system is highly versatile.
Log measurement
TVM-3D-LOG
LaseTVM-3D-LOG basis package
Measurement Process: Dynamic – Truck drives through the measurement area without stopping
Material: Roundwood / logs on a truck – bulk materials – sand, soil, gravel, stones, wood chips, etc.
Measurement Technology: 4 × 2D laser scanners with LaseTVM-3D-LOG application software
Measurement principle: Creation of a 3D model of the load and automatic volume calculation
Scanner configuration: 2 scanners above the lane, 2 scanners mounted on the left and right sides
Vehicle detection: Tracking laser scanners to monitor vehicle movement
Data output: Automatic volume calculation and storage of measurement data
Options LaseTVM-3D-LOG
-
OCR Identification - OCR camera for automatic license plate recognition
-
RFID Identification - RFID scanner for vehicles equipped with RFID transponders
-
HD Documentation Camera - Visual documentation of the load during measurement
-
Web Portal - Remote access to measurement data and system administration
-
Automatic Log Measurement – Fully automated measurement without operator intervention
-
Instant Volume Measurement – Measurement results available immediately after the vehicle passes through
-
Quick and Easy Installation – Can be mounted on existing infrastructure
-
No Queues – Dynamic measurement without stopping the vehicle
-
Tamper-Proof – Prevents manipulation of weight and volume data
Innovative
LASE is constantly developing new products to support you and optimize your processes.
Reliability
Low maintenance and service requirements.
Accurate
Our laser scanners measure with 98% accuracy.
Efficient
With our products, you can optimize your processes by saving time and money.
